3-Piece (Welded)

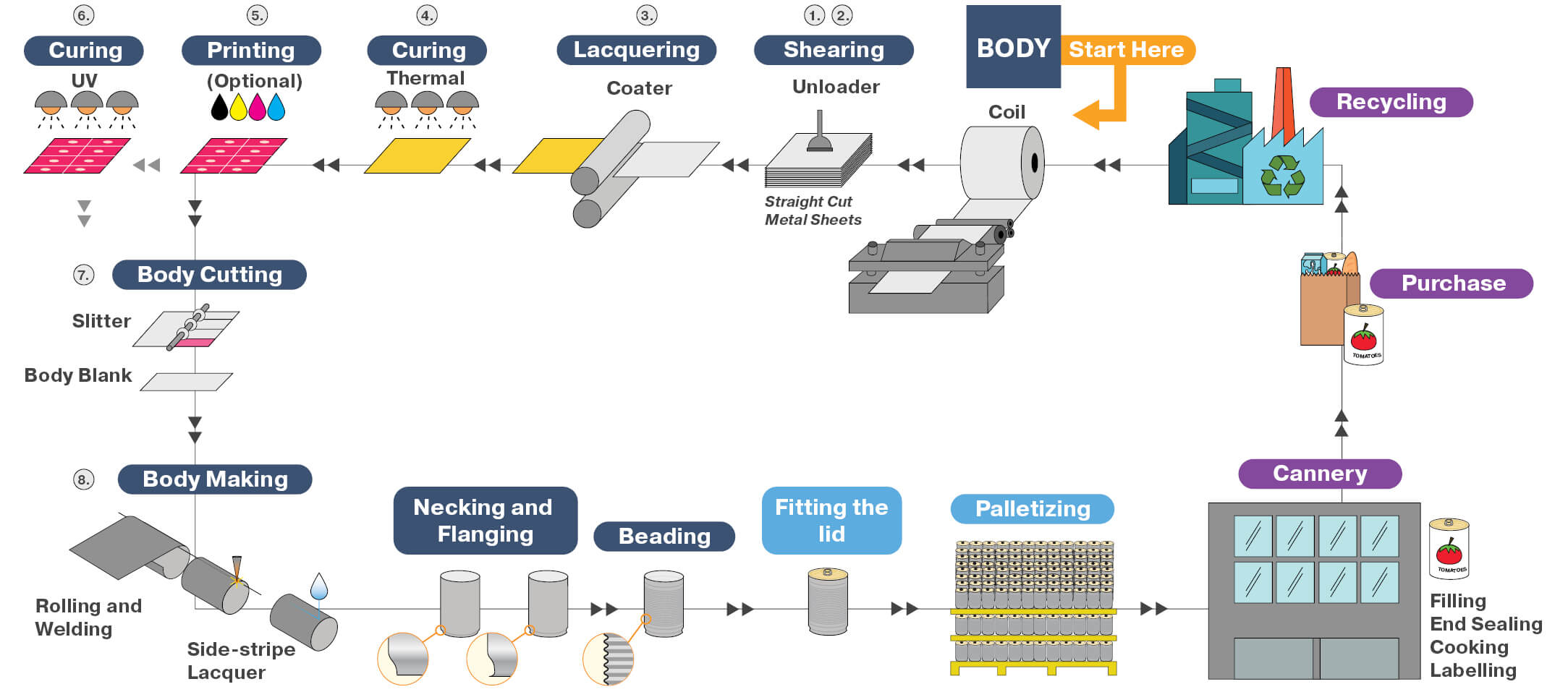

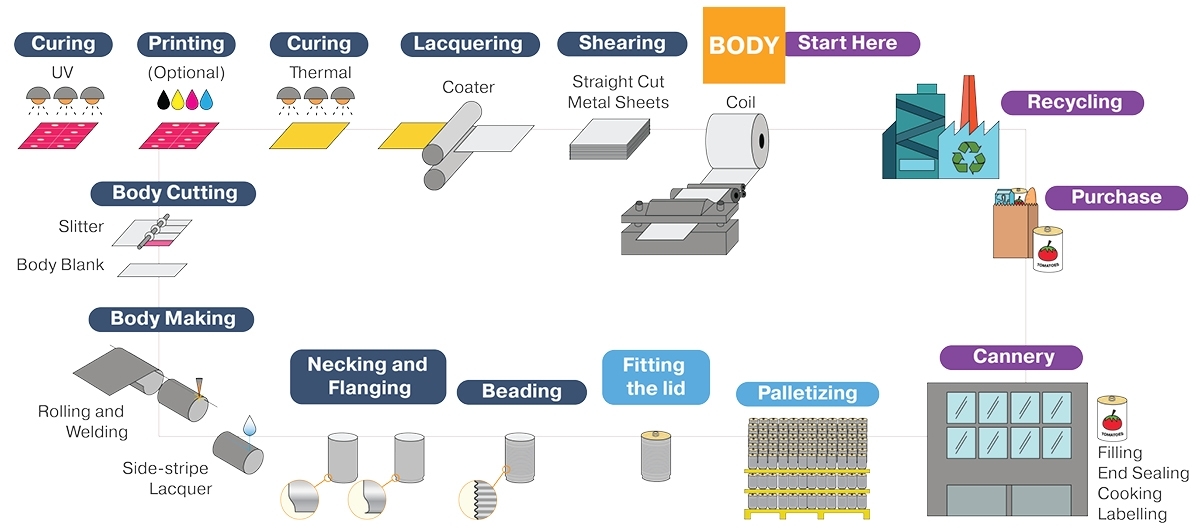

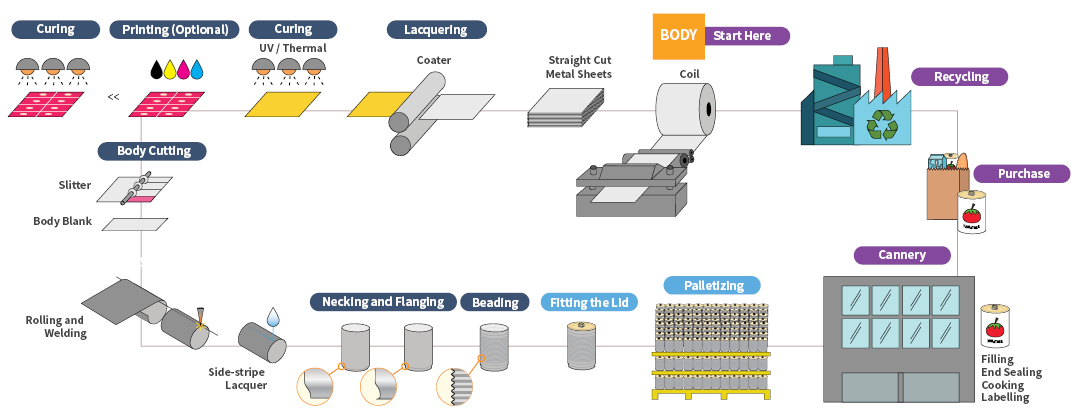

Canmaking Process Tour

Problems Per Line:
Coil and Shearing Lines: Translated coil, sheet length variations (shorter/longer sheets)
Depalletizer/Destacker/Unloader: Double sheets
Coater: Double sheets, misaligned margins, contaminated margins, sheets with missing lacquer, increase cost due to lacquer overconsumption, pinhole on lacquered sheets.
Curing (Oven Wicket): double sheets, margin contamination
Printing: Double sheets, misaligned prints, misplaced prints,
Curing (UV Oven): Uncured printed sheets
Slitter: Blunting of slitter blades because of double sheets, skewed sheets.
Welding: Weld wire breakage, lacquer presence, downtime, inside out cans, poor weld quality
Recommended sensors for each line:
Coil & Shear Lines
Coil Translation Measurement IS1270
On-line Sheet Length Measurement IS260
Coil Missing Lacquer Detector IS691
Depalletizer/Destacker/Unloader
Coater
Double Sheet Detector IS231
Sheet Skew Detector IS416
Sheet Translation Detector IS430 MK II
Sheet Registration Counter IS450
Missing Lacquer Detector IS641 / IS651
Curing (Oven Wicket)
Double Sheet Detector IS231
Oven Logger for Welded Can Lines SL2000
Printing
Curing (UV Oven)
Double Sheet Detector IS231
UV Logger IS310
Slitter
Double Sheet Detector IS231
Sheet Skew Detector IS416
Sheet Translation Detector IS430 MK II
Sheet Registration Counter IS450
Plain Margin Inspector IS610
Welding
