UV LOGGER

IS310

MEASURES UV LAMPS POWER & ENERGY IN THE OVEN FOR A RELIABLE, CONSISTENT & REPEATABLE CURING PROCESS

The IS310 UV Logger is the only credit card-sized measurement device that accurately measures the overall UV energy in the oven as well as the power & energy being emitted by each of the UV lamps separately.

The recording of data for each individual lamp makes it a unique logger and eases traceability and maintenance of lamps.

It also comes with free PC data analysis software that presents data as graphs for efficient management of lamps and reflectors to ensure a consistent and reliable curing of lacquers, inks, adhesives. etc.

Ask for a Quote

Related Products: Hoverprobe

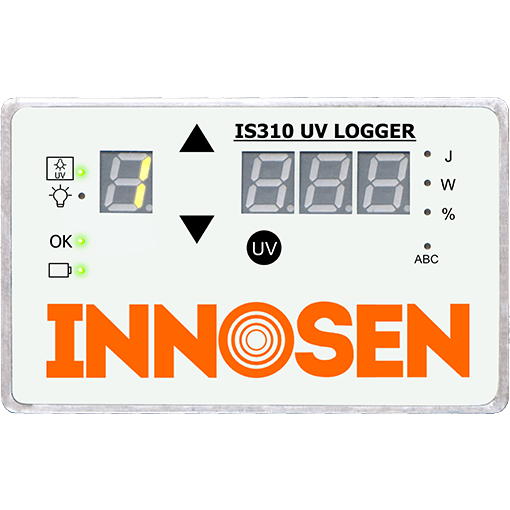

IS310 UV Logger

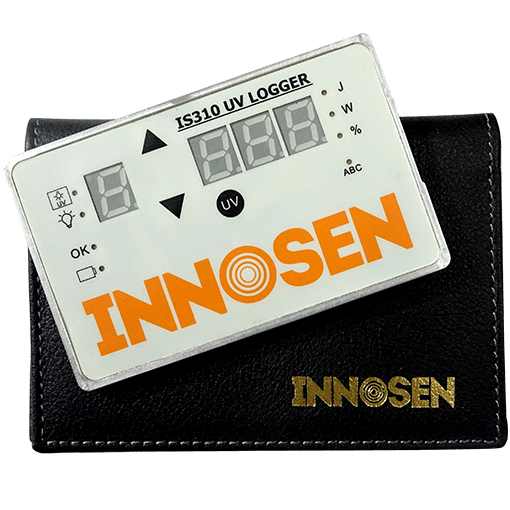

IS310 with pouch

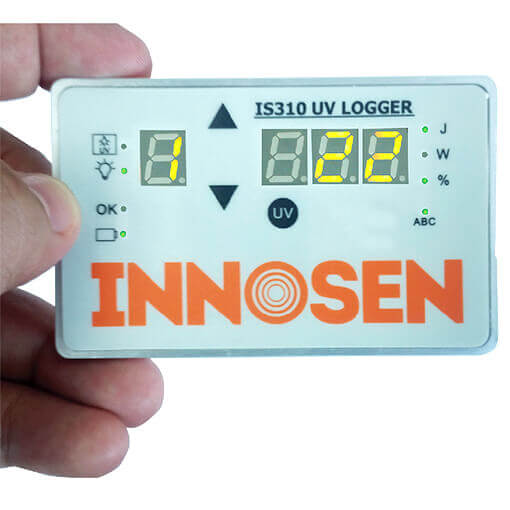

IS310 with Hand

BENEFITS

✅ Helps you determine whether you need to:
• Increase the lamp current
• Replace or reposition the lamp or the reflector
• Clean or change the reflector

✅ Prevents scrap and costly downtime

✅ Achieve consistent UV curing – improve quality

✅ Avoid under-curing

✅ Monitor UV oven efficiency

FEATURES

✅ Gives you separate readings for each lamp in your oven

✅ Stores data for up to 9 lamps in 9 different ovens

✅ The device is only 6mm (0.24”) thick
*This means it will go underneath most safety barriers and it measures close to the substrate to give a more accurate reading of the light intensity where the curing takes place

✅ Measures 2 parameters for each lamp:
-UV energy transmitted in Joules/cm2
-Peak lamp power in Watts/cm2

✅ Comes with free PC data analysis software

ROTATE IMAGE

Click (+) or double tap to ZOOM.

Specifications

System Components:UV Logger with rechargeable battery and USB cable
Dimensions:86 x 54 x 6mm (approx. 3.4 x 2.1 x 0.24 inch)
Sampling Rate:1000 readings/sec.
User Interface:Four (4) push buttons to allow users to display Total Energy, Peak UV Irradiance, Percentage Degradation Value and Selection of Lines and Lamps.
Selectable Detection Range (Power) and Resolution:

Detection Range

Resolution

UV Logger Display

Data Analysis Software

0.002 to 0.4 W/cm2

0.01

0.001 to 0.002

0.004 to 0.8 W/cm2

0.01

0.003 to 0.004

0.007 to 1.7 W/cm2

0.01

0.006 to 0.007

0.014 to 3.0 W/cm2 (default)

0.01 to 0.02

0.013 to 0.014

Detectable Energy Range:0.001 to 99.0 J/cm2

IS310 UV LOGGER SAMPLE READING:

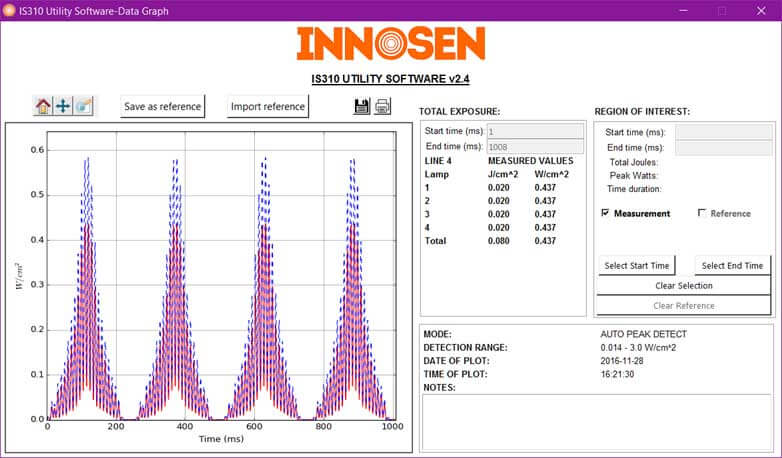

This graph shows the record of the IS310 UV Logger for Oven Line 4 with 4 lamps.

uv-logger-software-screenshot - Software 2.4

LINE 4                  Measured Values

Lamp                     J/cm^2                 W/cm^2

1                              0.020                     0.437

2                              0.020                    0.437

3                              0.020                    0.437

4                              0.020                   0.437

Total                      0.080                    0.437

Watch IS310’s Video
