Sheet Registration Measurement Option


Adds protection against poor sheet registration by warning of sheet misfeeds at the coater

Add-on to the IS415 Skew Measurement System

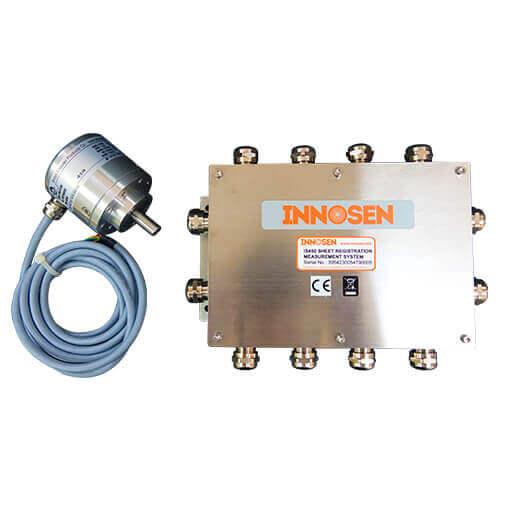

IS450 Sheet Registration Measurement Option

Some sheets arrive either early or late to the coater if the infeed grippers don’t catch the sheets properly.

The misplaced coating produced leads to waste and customer quality complaints.

By adding IS450 Sheet Registration Measurement to the IS415 Skew Measurement System, these problems can be kept to a minimum.


  • Process Improvement
  • Reduced Spoilage
  • Reduced Machine Downtime
  • Better Can Quality
  • High Speed Accuracy Allows 100% Inspection
  • Self-Adjusting and Self-Learning
  • User-defined reject limits
Sheet Registration Measurement Option IS450

For skew, accuracy is better than 0.2mm (0.008″).

For registration accuracy is better than 0.1 mm (0.004”).

For both, this accuracy is achieved at operating speeds of up to 9,000 sheets/hr. This allows 100% inspection of sheets at high speed.

Reduced Machine Downtime

If weld margins are not squarely aligned and registered properly, the chances of wire breakage at the welder and poor product quality will be significantly increased. By checking both squareness and registration, the main causes of downtime through weld wire breakage and customer complaint will be significantly reduced.

Better Can Quality

By ensuring correct alignment and timing of sheets entering the coater, can quality will be improved.

Process Improvement

The IS415 combined with the IS450 option (see also the IS430 option) gives you all the tools you need for a comprehensive coating process improvement program. By cutting out the need for manual measurements and giving immediate feedback as sheets go through the roll, the IS415 / IS450 combined system enables:

  • Quicker changeovers
  • Reliable roll Alignment
  • Faster production rates without the risk of extra scrap

By continuously monitoring and analyzing data, as well as giving predictive warnings before problems occur, the IS415 / IS450 combined system helps:

  • Make effective process improvements
  • Promote better operator training
  • Increase plant efficiency

Related Products

The Innosen IS415 Skew Measurement System can be upgraded with additional modules to provide complete coating placement monitoring system

Sheet Skew Measurement System

Sheet Skew Measurement System

Protects against poor coatings placement by detecting skewed (rotated) sheets at the coater. Unparalleled measurement accuracy with continuous data output and analysis also make the system a powerful process improvement tool … MORE

Sheet Translation Measurement Option

Sheet Translation Measurement Option

This upgrade module for the IS415 Skew Measurement System adds protection against 'translated' or laterally displaced coating by detecting sheet misalignment at the coater … MORE
