SHEET TRANSLATION MEASUREMENT SYSTEM

IS430 MK II

*Accessory to the IS416 Sheet Skew Measurement System

DETECTS TRANSLATED SHEETS OR SHEETS THAT MOVED SIDEWAYS TO AVOID LEADING CAUSE OF DOWNTIME

THE ENHANCED IS430 MK II SHEET TRANSLATION DETECTOR
✅ BETTER CONNECTOR PROTECTION
✅ LESS MAINTENANCE
✅ SAVE MONEY
✅ SAVE TIME

Skew, tilt or slight rotation of sheets as they go through the coater is not the only problem that can occur with sheet alignment and coating placement. Some sheets may also miss the side guide when entering the rollers and so they drift sideways or ‘translate’.

This will cause poor coating placement which can then lead to weld wire breakage, damage to weld rollers or poor-quality welds. With Innosen’s IS430 MK II Sheet Translation Detector, an add-on to the IS416 Sheet Skew Detector, these problems can be avoided.

The IS430 MK II is a Sheet Translation Detector for coating and lacquering lines. It is used at the outfeed of a machine and ensures that the sheet does not translate out of tolerance. This ensures that when the sheet is cut, the margins sit in the correct place. Misplaced margins will no longer cause the welder to stop operation.

The IS430 MK II is an upgraded version of IS430 with improved cables and connectors. These improvements allow better connector protection against lacquer splashes and mist, saving time and money for maintenance. The IS430 MK II is an add-on option to the IS416 Sheet Skew Detector and consists of a single IS430 MK II Measurement Head.

BENEFITS

✅ No weld wire breakage

✅ No problems down the line

✅ No downtime

✅ No customer complaints

✅ Less maintenance



FEATURES

  • Allows you to set your acceptable range of sideways movement in the system
  • Gives instant feedback if the sheet has translated beyond acceptable limits
  • Provides a ‘heartbeat’ signal to your line control to assure that your system is fully operational
  • Helps you determine the capability of your production process by providing statistical data, such as standard deviation and average

Specifications

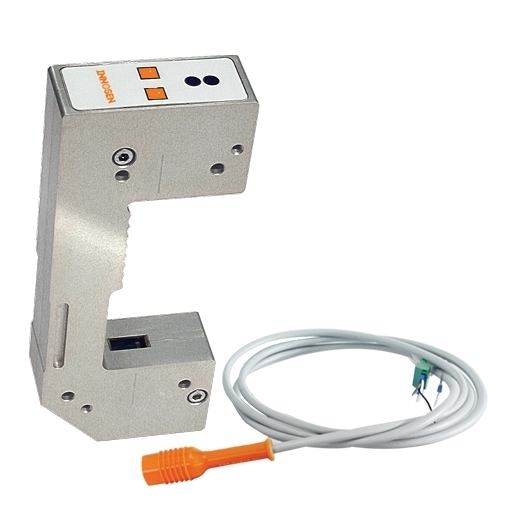

System Components: U-shaped measurement head
Dimension:40mm (w) x 100mm (l) x 230mm (h) or 1.6“ (w) x 4” (l) x 9” (h)
Measurement Range: ± 5mm (±0.20”)
Translation Accuracy:± 0.2mm (±0.8”)
Operation Speed:Up to 150m/minute (500 feet/minute)
Calibration:Automatic
Installation:Mounted on each side of the discharge conveyor; on the fixed outer margin side
Environmental protection rating:IP54

Spare Parts

PART DESCRIPTION PART NUMBER:
IS430 MK II Measurement Head 212-60502-00
Measurement Head Cable 12-way 5m straight connector 706-19341-00
Measurement Head Cable 12-way 10m straight connector 706-19341-01
Measurement Head Cable 12-way 5m right-angle connector 706-19361-00
Measurement Head Cable 12-way 10m right-angle connector 706-19361-01
IS228A Switchbox 395-60600-00
Cable Boot 735-54840-00
IS430 MK II Window Protection 211-43398-98
IS430 MK II Mounting Kit Add-On 211-54818-00

ADD ON

IS228A Sheet Positioning Measurement Switchbox

The IS228A is a switchbox for the IS430 MK II Sheet Translation Measurement System, that allows the users to connect two different IS430 MK II heads to the same electronics unit. The switch is connected between the controller and the IS430 MK II heads. It allows the operators to choose which sheet positioning measurement should be used, just by switching the knob from L to R. With the use of this switchbox, one controller can accommodate two different sheet translation measurement heads without connecting and disconnecting its cables to the controller.

This is convenient on production lines when the fixed outer margin often changes side as for optimum precision the IS430 MK II must always inspect the fixed outer margin.

IS228A Sheet Positioning Measurement Switchbox

Related Products

IS416

SHEET SKEW MEASUREMENT SYSTEM IS416

Protects against poorly placed coating by detecting skewed (rotated) sheets at the coater.

SHEET REGISTRATION MEASUREMENT SYSTEM IS450

SHEET REGISTRATION MEASUREMENT SYSTEM IS450

Adds protection against poor sheet registration by warning of sheet misfeeds at the coater.
