Electrolyte Management System

IS9024

Fills and empties large cans during enamel rating

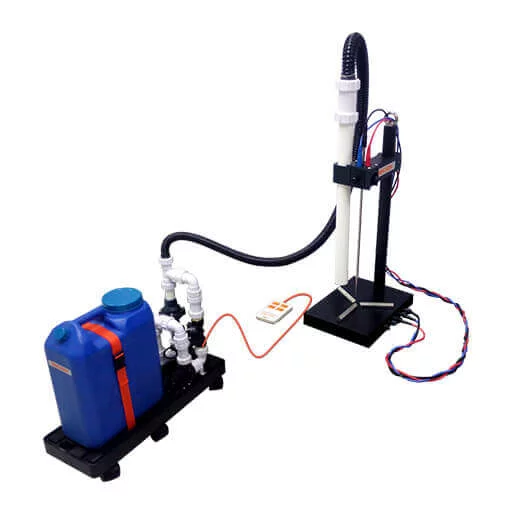

The IS9024 Electrolyte Management System is a semi-automatic system that fills and empties cans, drums and pails with electrolyte during enamel rating. It removes the hand-pouring step that causes most of the spills, and most of the wasted time, on a large-container test.

It is used together with the IS9015 Can Stand. The filling tube holder mounts into the IS9015 arm, and the filling tube, main probe and level probe are refitted into that arm once the holder is secured, so the stand keeps doing the positioning while the IS9024 handles the electrolyte.

Made from specially engineered plastic, the tank and base are built for a factory environment with minimal maintenance. A spillage exit hole in the base routes any overflow to a tray or a hose, and the unit is moved by pushing it on its wheels rather than by lifting the tank.

Ask for a Quote$Know More

Electrolyte management system features

Features of the IS9024 Electrolyte Management System
Features
Semi-Automatic Filling and Emptying – the can under test is filled and drained by the system, so the operator never has to lift or pour a heavy container of electrolyte.
Three-Speed Filling – three selectable fill speeds cover a wide range of container sizes, from roughly 0.5 litres up to 9 litres and beyond.
Remote Control Unit – fill, drain and speed selection are driven from a handheld control unit, with a separate LED pattern confirming each function.
Programmable Timing – fill and drain times can be taught per can size and are retained after a power cycle, so a batch of identical cans runs the same way every time.

Benefits of the IS9024 electrolyte management system

Benefits of the IS9024 Electrolyte Management System
Benefits
Saves Time – filling and emptying run automatically instead of by hand, which shortens every cycle on a large-can test.
Easier With Large Containers – drums and pails that are awkward to fill and empty manually are handled by the system.
No Heavy Lifting – nobody has to lift or carry a container filled with electrolyte.
Less Risk of Spills – electrolyte is moved through the filling tube rather than poured, and a spillage exit hole in the base routes any overflow to a tray or hose.

Electrolyte management system spare parts

Replaceable parts for the IS9024 Electrolyte Management System
Spare Part	Part Number
IS9024 Electrolyte Management System	390-51600-98
IS9024 Tube Holder	113-51642-91

Electrolyte management system specifications

Key specifications of the IS9024 Electrolyte Management System
Specifications	Value
Tank Capacity	18.9 litres
Maximum Size of Test Can	14 litres
Minimum Electrolyte in Tank	5 litres
Supply Voltage	24 V DC ±10%
Supply Current	Typically 5 A (an 8 A power supply is recommended and is not included)
Weight (Empty Tank)	12 kg
Weight (Full Tank)	Approximately 31 kg
Operating Temperature	0–45 °C (32–113 °F)
Humidity	0–90%, non-condensing
Dimensions	525 mm x 240 mm x 640 mm
Used With	Innosen IS9015 Can Stand and IS810 EnamelPro™ Enamel Rating Gauge

Accessories

Electrolyte Management System

IS9024

Fast, semi-automatic electrolyte handling for the can stand: it fills and empties the can under test, with a 3-speed filling option for a large range of cans (0.5 to 9+ litres), programmable timing and a remote control unit. It connects easily to the IS9015 and retrofits to older can stands.

Accessory

Make an inquiry

Can Stand with Crown Adapter

IS9015-CRW

This adapted version of the can stand enamel rates crown closures while still testing standard beverage, food and aerosol cans, so one flexible, economic tool covers the metal packaging QA lab. The base dome of beverage and aerosol cans, and the base rim of welded food cans, fit over the central crown adapter and touch the wide contact blades.

Variant

Make an inquiry

Innolytix®

IS1100

Data visualization & analytics software for enamel rating and coating thickness measurement. The IS1100 consolidates gauge output into one intuitive dashboard. It connects with gauges via RS232 and RS485, automatically capturing production data and visualizing it through clear, interactive tools such as line graphs and heat maps.

Accessory Software

Make an inquiry

Enamel Rater Switchbox

IS228B

Connects two different enamel rater probes to the same electronics unit, selected with a simple A/B knob.

Accessory

Make an inquiry

Semi-automatic Enamel Rating Gauge

IS810 EnamelPro™

The semi-automatic enamel rating gauge that these enamel rater stands and adapters connect to. Reverse-polarity defect localization and live logging to Innolytix®.

Gauge

Make an inquiry

Light Probe

IS9029

Lights up the inside of a tube / can to make it easy to see faults during enamel rating tests.

Accessory

Make an inquiry

Already own this product?

Get product support ➜

Request manual ➜

Frequently Asked Questions

What does the IS9024 Electrolyte Management System do?

The IS9024 fills the can under test with electrolyte and drains it again during enamel rating, so nobody has to lift or pour a heavy container by hand. It is built for large volumes — cans, drums and pails — and it is used together with the IS9015 Can Stand.

Which can sizes can the IS9024 handle?

The three-speed filling option covers roughly 0.5 litres up to 9 litres and beyond, and the maximum size of test can is 14 litres. Any electrolyte left in the test can afterwards should be returned to the tank.

Does the IS9024 need the IS9015 Can Stand?

Yes. The filling tube holder mounts into the IS9015 arm, and the filling tube, main probe, level probe and banana plugs are then refitted into that arm. Position the IS9015 higher than the IS9024, on a bench at least 75 cm high.

What does semi-automatic filling and emptying mean on the IS9024?

You teach the unit the timing for a given can size: press and hold the speed button until the can is full and release it, then press and hold DRAIN until the can is empty and release it. Double-tapping the same button replays that timing. One value is stored per button and re-programming the same button overwrites it, the setting survives a power cycle, and pressing LOW SPEED and MID SPEED together for three seconds clears the stored times.

Why do the pumps need priming, and how is it done?

Starting from an empty tank, the pumps will not move electrolyte reliably until they have been primed. Put an empty test can on the IS9015, fill the tank with at least 5 litres of electrolyte, then alternate the HIGH SPEED and DRAIN buttons in roughly five-second bursts until the flow runs smoothly.

What power supply does the IS9024 need?

The IS9024 runs on 24 V DC ±10% and draws typically 5 A. An 8 A power supply is recommended and is not supplied with the unit. The operating range is 0–45 °C at 0–90% non-condensing humidity.

How is the IS9024 maintained?

Wipe the base after any electrolyte spillage, and move the unit by pushing it on its wheels rather than lifting it — never lift it by the tank. Do not modify or open the unit: opening it is likely to cause a malfunction and voids the warranty.

What should I check if the IS9024 will not fill or empty a can?

Check that the LED on the control unit is green, that there are at least 5 litres of electrolyte in the tank, and that the pumps are primed. If a pump stays silent when its button is pressed after the tank has been emptied with a hand-held pump, that pump is probably faulty — contact Innosen with your troubleshooting results.
