ENAMEL RATING GAUGE
IS810 ENAMELPRO™
The IS810 EnamelPro™ Enamel Rating Gauge is Innosen’s next generation semi-automatic system – higher resolution, smarter pre-test checks, and on-board defect localization.
The widest enamel rating capability in the market — ends, caps, cans, tubes, capsules, foils and flat sheets.
The IS810 EnamelPro™ is Innosen’s semi-automatic enamel rating gauge for metal packaging QA. It measures the integrity of the lacquer film inside cans, ends, tubes, capsules, foils and flat sheets using interchangeable fixtures. Annual calibration is performed on site, and every reading logs in real time to IS1100 Innolytix® data management.
A microscopic pore in a lacquer film doesn’t look like much — until it surfaces as a corrosion claim, a leaker, or a tainted product weeks down the line. The cost of catching it late is always higher than the cost of catching it now.
The IS810 EnamelPro™ addresses this directly: higher-resolution measurement, automatic pre-test contact and electrolyte checks, and reverse-polarity localization that shows an operator exactly where the coating failed. Readings stream live into IS1100 Innolytix®, so a defect found on the floor is already in the quality record.
This isn’t an incremental upgrade — it’s the new standard.
How it works
The gauge measures the electrical integrity of the lacquer film inside a metal container. The container is held in the appropriate fixture, an electrolyte is brought into contact with the coated surface, and a test voltage of between 3 and 30 V is applied. An intact coating insulates almost completely, so only a very small current flows. Pores, cracks, scratches and thin spots expose bare metal and allow more current through, and the gauge reports that current as the enamel rating. Reversing the polarity then makes gas bubble up at the exposed metal itself, turning a number into a located defect.
Read more about enamel rating in Canpedia®.
What is the IS810 EnamelPro™ enamel rating gauge?
The IS810 EnamelPro™ is Innosen’s semi-automatic enamel rating gauge for metal packaging QA. It measures the integrity of the lacquer film inside cans, ends, tubes, capsules, foils and flat sheets, using a range of interchangeable fixtures.
How accurate is the IS810 EnamelPro™?
The IS810 EnamelPro™ measures with linearity better than 1%, across an adjustable 3–30 V test range and a current range up to a full 1 A. Annual calibration is carried out on site, so that accuracy is maintained without the gauge ever leaving your facility.

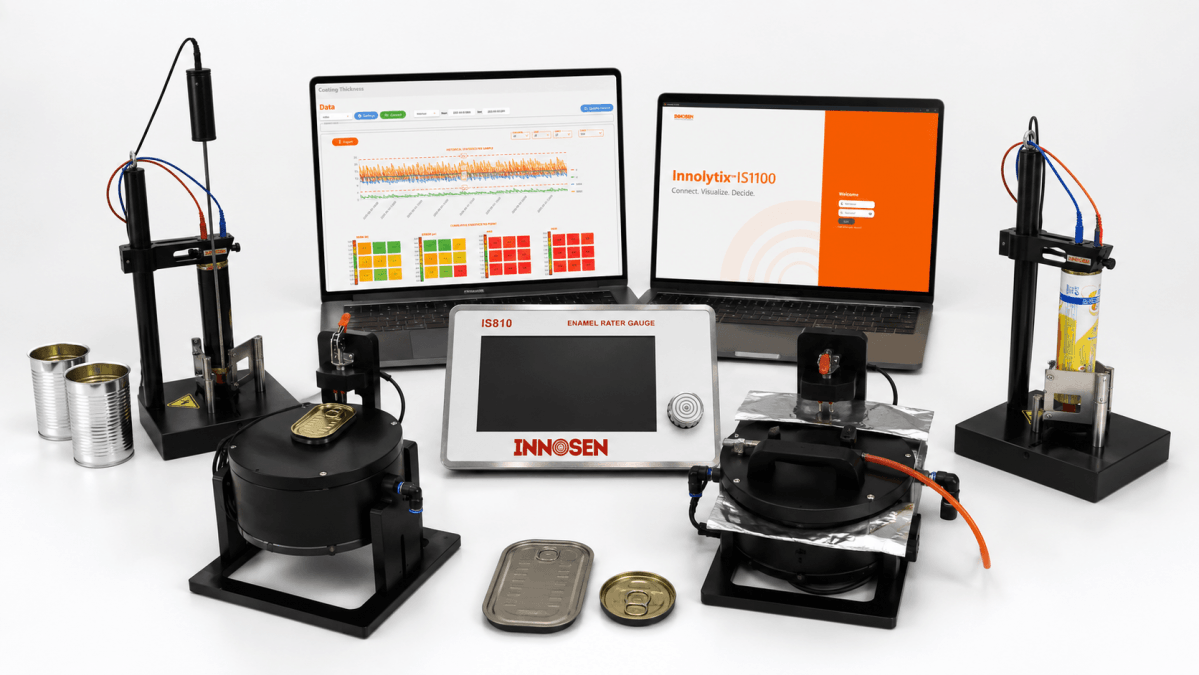

Innosen’s complete enamel rating line
No one covers more of the canmaking world. Innosen offers the widest enamel rating capability on the market, and it is at its widest on the hardest parts to rate — ends and caps. Between the fixtures below, the IS810 EnamelPro™ rates ends, caps, cones and domes, two-piece, three-piece and aerosol cans, collapsible tubes, aluminium capsules, drums and pails, thin and thick foil, and the rivet area of easy-open ends. If it is made in canmaking, it can be enamel rated.
Features
| Features |
|---|
| High-Precision Measurement – Linearity better than 1% |
| Adjustable Voltage – 3–30 V range with a 1 A current range |
| Reverse-Polarity Localization – Reverses the gauge polarity so gas bubbles form at the exact point of bare metal |
| Standards Compliance – Meets EN 15384-1 and EN 15384-2 for flexible aluminium tubes |
| Live Data Logging – Readings stream in real time to IS1100 Innolytix® |
| Onsite Calibration – Annual calibration performed on your floor, with no return shipment |
| Pre-Test Integrity Checks – Contact verification and electrolyte level check before every measurement |
| Semi-Automatic Operation – Intuitive multilanguage user interface |
| Dual-Control Display – 7-inch full-color touchscreen plus jog wheel |
| Secure Operation – Password protection and anti-tamper lockout for consistent, compliant QC testing |
| Triple Connectivity – USB-C, RS485 and Ethernet |
| Onboard Storage – Capacity of up to 100,000 readings |
| Industrial Housing – IP65-rated powder-coated stainless steel with industrial connectors |
| Universal Power Supply – 100–240 VAC @ 50/60 Hz |
| Flexible Mounting – Optional VESA 100×100 mm and 75×75 mm monitor-arm kit |
| Extended Cover – 5-year extended warranty option available |
Compatible Fixtures
| Fixture | Application |
|---|---|
| IS9015 Can Stand | 2-piece, 3-piece and aerosol cans |
| IS9017 Tube Stand | Aluminium collapsible tubes |
| IS9020TMR / IS9019TM End Adapter | Ends, caps, cones, domes and flat sheets |
| IS9018 Aluminium Capsule Stand | Aluminium capsules |
| IS9015XXL Large Can Stand | Drums, pails and extra-large cans |
| IS9030 Foil Adapter | Thin and thick aluminium foil |
| IS9025 EOE Rivet Adapter | Rivet area of easy-open ends (EOE) |
| IS9021 Vacuum Generator | Used with the end adapter |
| IS9023 Automatic Vacuum Control Unit | Used with the end adapter |
Specifications
| Specifications | Value |
|---|---|
| Application | Enamel coating integrity on cans, ends, tubes, capsules, foils and flat sheets |
| Measurement | Linearity better than 1% |
| Voltage range | 3–30 V, adjustable |
| Current range | 1 A |
| Defect localization | Reverse-polarity mode — bubbles form at the point of exposed metal |
| Standards | EN 15384-1 and EN 15384-2 (flexible aluminium tubes) |
| Display | 7″ full-color touchscreen with jog wheel dual control |
| Housing | IP65 powder-coated stainless steel with industrial connectors |
| Connectivity | USB-C, RS485 and Ethernet |
| Data storage | Up to 100,000 readings |
| Power | Universal 100–240 V AC, 50/60 Hz |
| Software | IS1100 Innolytix® integration |
| Calibration | Onsite, annual — no return shipment required |
| Mounting | Optional VESA 100×100 mm and 75×75 mm monitor-arm kit |
| Warranty | Standard, with a 5-year extended option |
Full technical specifications available in the product datasheet.
Engineered for the people who run the line.
Every detail of the EnamelPro was shaped by the realities of a Quality Control Lab — gloves, splashes, deadlines, and audits.
Every test starts correctly.
Automatic pre-test integrity checks. Contact verification and electrolyte level check.
Memory that keeps up.
100,000 readings on board.
Built for real factories.
IP65. Powder-coated stainless housing. Dust, splashes, knocks — EnamelPro shrugs them off.
Find the failure, not just the number.
Reverse-voltage defect localization. Pinpoint where lacquer defects sit.
Plugs into your world.
Triple connectivity. USB-C, RS485 and Ethernet.
Every reading, in context.
Engineered to work with IS1100 Innolytix®. Readings stream directly into dashboards.
Designed for the line.
A 7-inch touchscreen. Plus a jog wheel — gloves, grit and all.
Calibration, reinvented.
Annual calibration — performed on site. Zero downtime. Always available.
Frequently Asked Questions
What does an enamel rating gauge actually measure?
How does the IS810 EnamelPro show where a coating has failed?
Which containers and substrates can the IS810 EnamelPro test?
Why does an adjustable test voltage matter?
Does the IS810 EnamelPro have to be shipped away for calibration?
How do readings get off the gauge and into a quality report?
Which standards does the IS810 EnamelPro comply with?
