CAN STAND FOR ENAMEL RATER
IS9015
TESTS LACQUER QUALITY IN A WIDE VARIETY OF CAN SHAPES AND SIZES

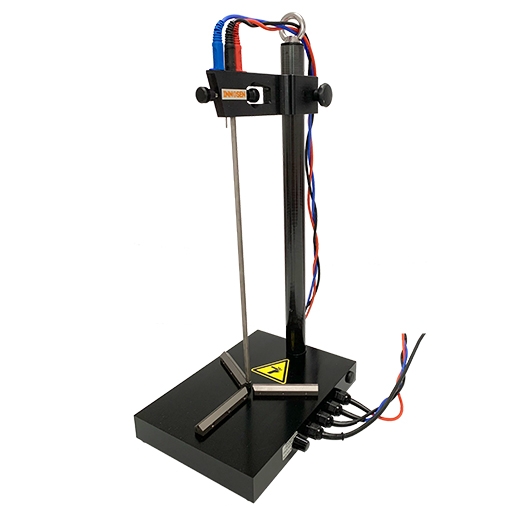

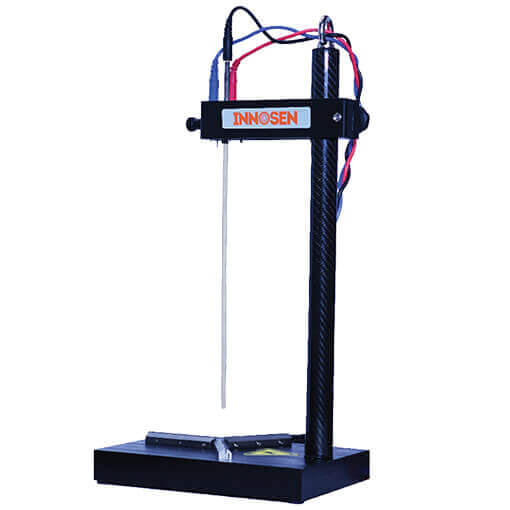

About the IS9015 Can Stand
The IS9015 is a height-adjustable can stand for enamel rater testing across a wide variety of can shapes and sizes. One stand covers 2-piece, 3-piece and aerosol cans, from small food cans up to large containers, because the arm raises the working height from 50 cm up to 80 cm instead of asking you to change fixture.
Titanium probes carry the test current, so the parts that sit in the electrolyte every day are rust resistant and contact resistance stays stable. Sharp, blunt-proof contact blocks assure perfect can contact without sandpaper, a can contact sensor confirms each can is properly contacted before a reading is taken, a fill level probe checks the test solution, and built-in calibration resistors with a verification switch let an operator prove the measuring chain at the bench in seconds.
The stand is semi-automatic. Once a can is seated and contacted, the IS9015 triggers the reading, so an operator can measure a batch without pressing a key on the gauge. It connects directly to the IS810 EnamelPro™ enamel rating gauge, which applies and adjusts the test voltage, localizes defects with reverse polarity and logs every result to Innolytix® QA software.
Related Products: IS1100 Innolytix, Light Probe, Tube Enamel Rater Stand, IS810 EnamelPro, Electrolyte Management System
Features of this can stand for enamel rater
| Features |
|---|
| Built for the Full Range of Can Sizes – one stand covers 2-piece, 3-piece and aerosol cans, from small food cans up to large containers |

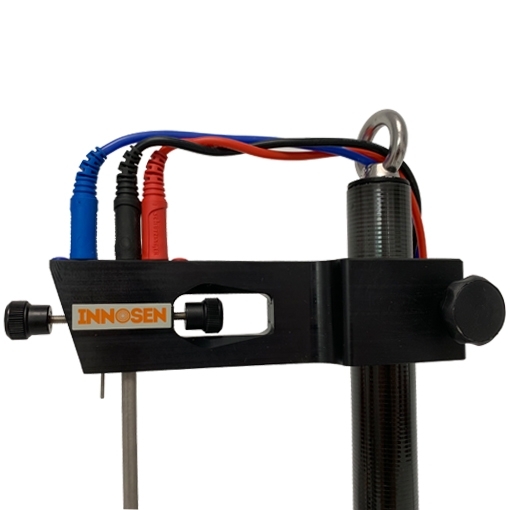

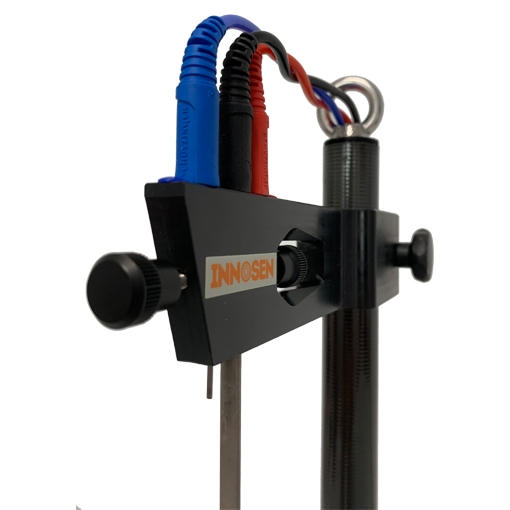

| Height-Adjustable Arm – the arm raises the stand from its 50 cm working height up to 80 cm, so a tall can needs a setting rather than a second fixture |
| Titanium Probes – the contacts that sit in the electrolyte every day are titanium, so they are rust resistant and contact resistance stays stable |

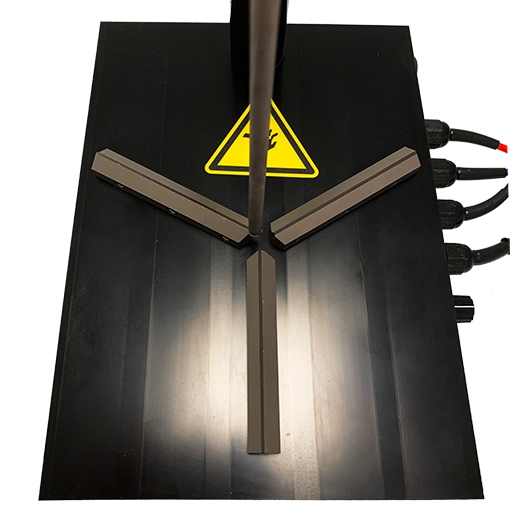

| Blunt-Proof Contact Blocks – sharp, blunt-proof contact blocks assure perfect can contact without dressing the surface with sandpaper |
| Can Contact Sensor – confirms the can is correctly contacted before a reading is taken, because bad contacts are the main cause of unreliable enamel ratings |
| Semi-Automatic Operation – seat the can and the stand triggers the reading, so an operator can measure a batch without pressing a key on the gauge |

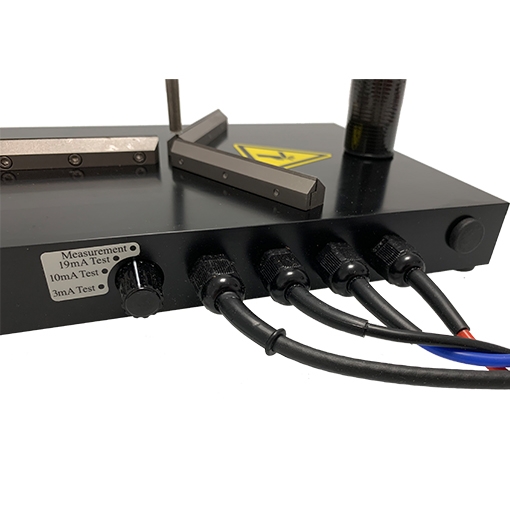

| Integrated Calibration Verification Switch – built-in calibration resistors and a verification switch confirm the whole measuring chain in seconds |
| Fill Level Probe – checks that the test solution is at the correct level, so every can is tested against the same electrolyte volume |
| Automatic Contact Voltage Sensing – test voltage is adjusted automatically, removing an operator setting from the procedure |
| Compact Bench Footprint – 24.2 cm wide and 17.5 cm deep, so it fits a working QA bench alongside the gauge |
Can stand benefits
| Benefits |
|---|
| Smart design that holds large cans steady – a strong base carries large containers, and the level probe confirms the test liquid before the reading is taken |
| Low maintenance – the arm and probe detach for washing, and the specialized silicone cables take repeated bending without breaking |
| Cost-efficient over years, not months – titanium probes and corrosion-proof construction mean durable parts that do not need constant repair |
| Operator-independent results – contact checking, automatic voltage sensing and fill level checking remove the three most common sources of operator error |
| Faster batches – hands-free semi-automatic testing keeps the operator on the cans instead of on the keypad |
| Audit-ready data – paired with the IS810 EnamelPro™ and Innolytix®, every reading is captured, timestamped and reportable |
Can formats, handling and integration
| Can formats, handling and integration |
|---|
| Can range – 2-piece and 3-piece cans plus aerosols, across a wide span of diameters and heights |
| Height adjustment – the arm raises the stand from its 50 cm working height up to 80 cm, covering tall cans without a second fixture |
| Loading – the can is seated on the stand and contacted by the blunt-proof contact blocks; there is no clamping, so nothing mechanical presses on the internal lacquer |
| Electrolyte – the can is filled with test solution to the level confirmed by the fill level probe; the IS9024 Electrolyte Management System can fill and empty semi-automatically |
| Integration – the stand connects to the IS810 EnamelPro™ gauge, which applies the test voltage, localizes defects and streams results to Innolytix® |
| Sharing one gauge – with the IS228B switchbox a can stand and a second fixture can share the same electronics unit, selected with a knob instead of unplugging |
Compatible Systems
| System | Role |
|---|---|
| IS810 EnamelPro™ | The semi-automatic enamel rating gauge the IS9015 connects to. It applies the test voltage, localizes defects with reverse polarity and logs every reading. |
| IS1100 Innolytix® QA Software | Captures gauge output over RS232 and RS485 and visualizes enamel rating data in dashboards, line graphs and heat maps. |
| IS9024 Electrolyte Management System | Optional. Semi-automatically fills and empties the can under test, with three-speed filling for 0.5 to 9+ litre cans, a remote control unit and programmable timing. Retrofittable to older can stands. |
| IS9029 Light Probe | Optional. Lights the inside of the can so coating faults are easy to see during enamel rating. |
| IS228B Enamel Rater Switchbox | Optional. Connects two different enamel rater probes to one electronics unit and selects between them with a knob instead of unplugging. |
| IS9015-CRW Can Stand with Crown Adapter | Variant. Adds crown closures to the same stand while standard beverage, food and aerosol cans can still be tested. |
Can stand spare parts
| Spare Part | Description |
|---|---|
| Titanium probe set | The contacts that sit in the electrolyte. Replaceable without returning the stand. |
| Can contact sensor | The sensor that confirms correct contact with each can before a reading is taken. |
| Fill level probe | The probe that verifies the test solution is at the correct level. |
| Height-adjustable arm assembly | The detachable column and arm that set the working height for each can format. Washable. |
| Test solution (electrolyte) | Consumable. Ask for the correct formulation and volume for your can range. |
Part numbers depend on your can range and build. Ask for a quote and we will confirm the correct spares for your IS9015.
Can stand specifications
| Specifications | Value |
|---|---|
| Application | Enamel rating (coating porosity) of 2-piece, 3-piece and aerosol cans |
| Gauge | Used with Innosen’s IS810 EnamelPro™ Enamel Rating Gauge |
| Quality Measurement | Calibration Verification Switch to ensure correct rating |
| Fill Level Probe | Ensures the correct level of test solution |
| Can contact sensor | Confirms correct contact of the can |
| Contact Voltage Sensing | Voltage is adjusted automatically |
| Probe material | Titanium |
| Dimensions of the can stand | 24.2 cm (w) x 50 cm (h) x 17.5 cm (l), up to 80 cm (h) |
| Standard Compliance | RoHS, WEEE, CE |
Frequently asked questions about the IS9015 can stand
What can sizes does the IS9015 handle?
One stand covers 2-piece, 3-piece and aerosol cans, from small food cans up to large containers. The height-adjustable arm raises the working height from 50 cm up to 80 cm, so a tall can is a setting on the same stand rather than a reason to buy a second fixture.
Do I have to dress the can surface with sandpaper before testing?
No. The contact blocks are sharp and blunt-proof, which is what assures perfect contact with the can on its own. Abrading the surface is not part of the procedure, and the can contact sensor confirms the contact is good before a reading is taken.
How does the semi-automatic operation work?
Once a can is seated and correctly contacted, the stand triggers the reading itself. The operator can work through a batch without pressing a key on the gauge, which keeps their hands on the cans rather than on the keypad.
How do I confirm the stand and gauge are reading correctly?
Built-in calibration resistors and a verification switch confirm the whole measuring chain in seconds. Because it is that quick, calibration can be checked at every shift change rather than only at annual calibration.
Can the IS9015 test crown closures?
Not as standard, but the IS9015-CRW variant adds a crown adapter to the same stand, and standard beverage, food and aerosol cans can still be tested on it. Ask which version suits your range before ordering.
Does anything help with filling and emptying large cans?
Yes. The optional IS9024 Electrolyte Management System fills and empties the can under test semi-automatically, with three-speed filling for 0.5 to 9+ litre cans, a remote control unit and programmable timing. It can be retrofitted to older can stands.
ACCESSORIES
IS9015-CRW
The base dome of standard beverage and aerosol cans, and the base rim of welded food cans fit over the central crown adapter and touch the wide contact blades.
ELECTROLYTE MANAGEMENT SYSTEM
IS9024
Fast and Semi-automatic.
The IS9024 Electrolyte Management System offers the following features:
- Semi-automatically fill and empty the can under test with electrolyte
- 3-speed filling option to accommodate large range of cans (0.5 to 9+ litres)
- Remote control unit for easy operation
- Programmable timing to fill and empty cans
- Easy connection to the IS9015 Can stand
- Retrofittable to old can stands
