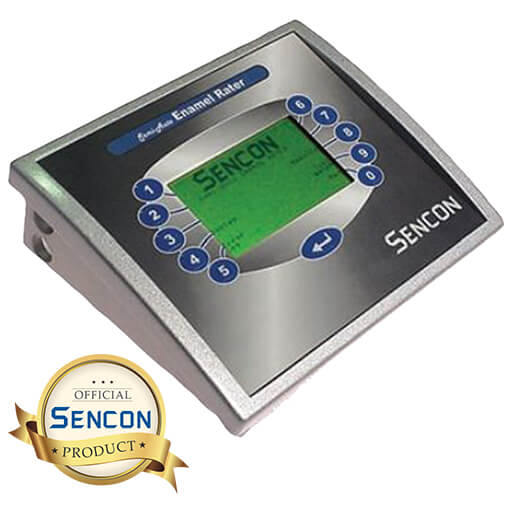

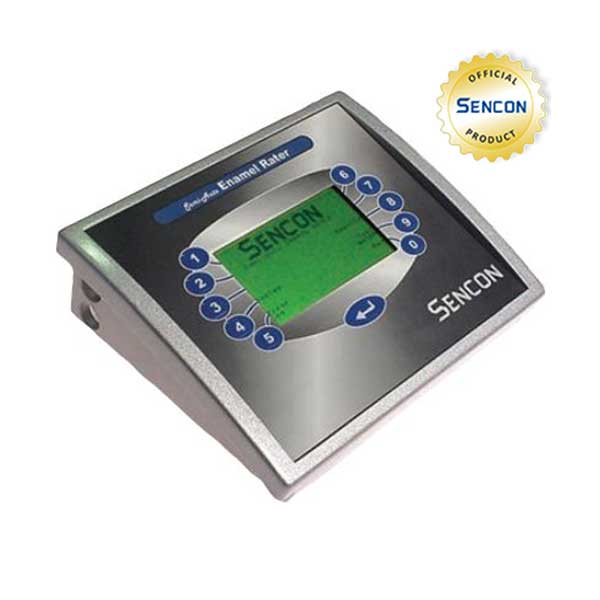

SEMI-AUTOMATIC ENAMEL RATER

SI9100

MEASURES COATING QUALITY OF METAL SHEETS, CANS, TUBES, & ENDS

The SI9100 Semi-Automatic Enamel Rater is one of the most widely used gauges in the can making industry.

It measures the integrity of coating or lacquer of flat sheets, cans, tubes, and ends by testing the amount of exposed metal on the object.

What makes it unique is that it has advanced test monitoring features that reduce enamel rating errors to ensure that you’ll only get the best results.

BENEFITS

✅ Reduce measurement errors

✅ Get accurate data

✅ Improve coating quality

✅ Keep the quality of your product high

FEATURES

✅ Remote voltage sensing

✅ Body contact checking with test interlock

✅ Used the industry standard conductivity test

✅ Optional screen blanking during test cycle

✅ Batch test facility with calculations of mean, range, and standard deviation

✅ Reverse polarity and free run modes for defect analysis

✅ Printer port with user selected report formats

✅ Corrosion – proof polyurethane casing and waterproof fascia

✅ Multilingual: French, Italian, German, Spanish, and English

Specifications

Dimension:253 (“9.96) x 78 (“3.07) x 230 (“9.05)
Test Voltage Accuracy:±1% (0-500mA range)
High Current Display Precision:0.01mA up to 50mA
Response Time:4 seconds (standard time)
Installation / Where to put:Quality Assurance Lab
International Protection Rating :IP65
