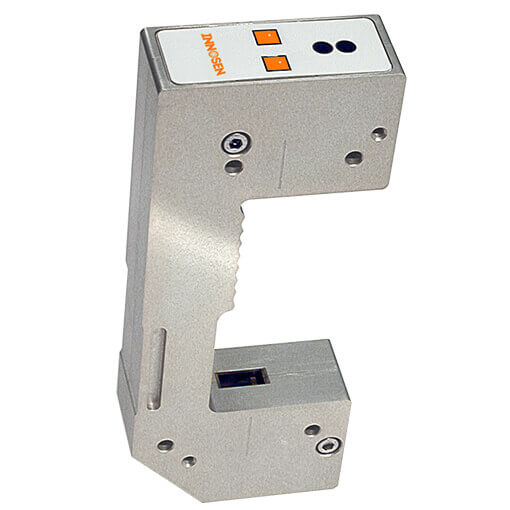

Coil Measurement Translation System

IS1270 MK II

MEASURES SIDEWAYS MOVEMENT OF THE COIL TO AVOID CLIPPED CURLS

The Enhanced Version
✅ Better connector protection
✅ Less maintenance
✅ Save money
✅ Save time

The IS1270 MK II Coil Translation Measurement System monitors and measures the coil’s edge position as it goes through the cutting line.

This is beneficial to the coil cutting line because any horizontal movement or even very small misalignment of the scroll edge will eventually result in clipped curls.

This is especially important for scroll sheets used to make ends as it ensures no clipped curls will be present when ends are stamped out.

The IS1270 MK II is an upgraded version of IS1270 with improved cables and connectors. These improvements allow better connector protection, saving time and money for maintenance.

BENEFITS

✅ Prevent clipped curls by measuring coil translation on the cutting line

✅ Avoid various problems down the line (e.g., damaged gauging roll or fixed guide, width variations)

✅ Reduce spoilage

✅ Easily identify unacceptable variations in coil width during a batch run

✅ Helps detect damaged rolls, if the sheet has cut into the roll or if the bearings are worn

FEATURES

✅ Instant warning about the sideways movement of the coil beyond tight preset limits

✅ Can be used for re-calibration of the fixed guide to compensate for wearing down of the gauging rolls

✅ Thin vertical sensor body to allow easy mounting

✅ Stronger, durable cables that give better connection protection and save maintenance time

✅ Live on-screen info of coil translation during the inspection

✅ Calculates values for the average and the standard deviation

✅ RS232 output of translation measurement data

✅ Quick alignment feature of IS1270 MK II Head using a button and two small lamps placed locally on the head

✅ Suitable for mounting on either side of the line

Specifications

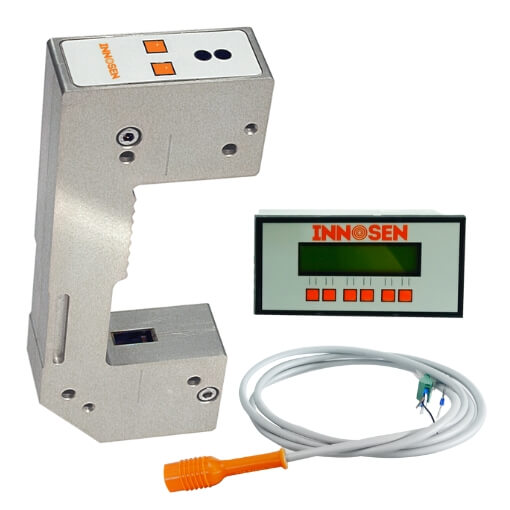

System components:Inspector Head, Controller with LCD screen
Dimension:Head: 230mm (9.05”)x 40mm (1.57”) x100mm (3.93”)
Controller: 139 (5.47”) x 66mm (2.6”) x 71mm ( 2.8”)
Sample frequency:4 readings per second
Line Speed:Up to 350 m/min
Range of Translation Measurement:±5mm (±0.2”)
Accuracy of Translation Measurement::±0.08mm (±3 thou.)
Cable:5m (Standard Size)
*For other lengths, contact Innosen. Use only Innosen supplied cables.
Where to install:Unloader/uncoiler; over the edge of the coil just before the shears as part of the fixed guide assembly
Calibration:Automatically calibrated after alignment is finished
Environmental Protection Rating:IP54
