LARGE CAN STAND FOR ENAMEL RATER

IS9015XXL

TESTS LACQUER QUALITY IN A WIDE VARIETY OF PAILS AND EXTRA-LARGE CANS

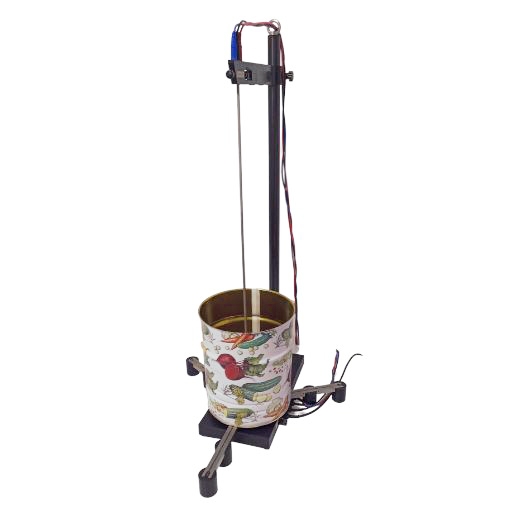

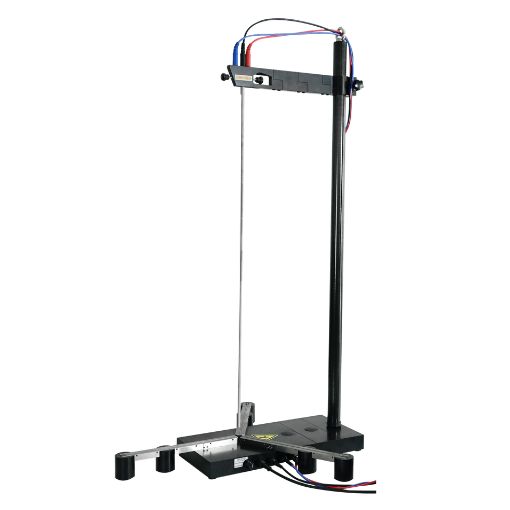

The IS9015XXL Large Can Stand for Enamel Rater is designed for versatility and accuracy. The height-adjustable arm is ideal for measuring the coating porosity of a wide range of pails and extra-large cans.

With the new TITANIUM PROBES that are rust-resistant, measurement is always highly accurate.

With the semi-automatic feature, enamel rating is more efficient than ever.  Measure a batch without pressing a key on the gauge.





Specifications


Display: Used with Sencon’s SI9100 Enamel Rater Gauge

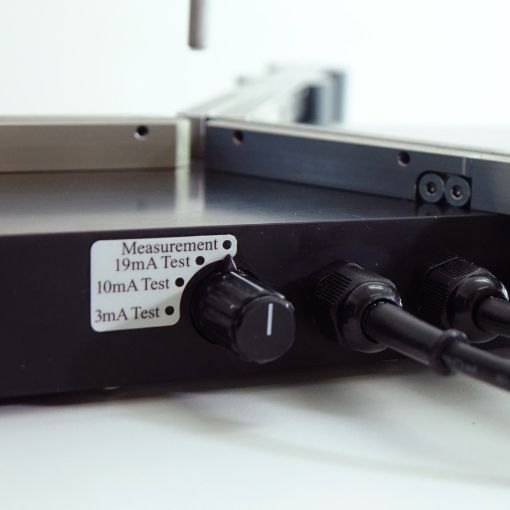

Quality Measurement:Calibration Verification Switch to ensure correct rating
Fill Level Probe:Ensures the correct level of test solution
Dimension of the Can Stand:465mm (w) x 520 mm (l) x 913 mm up to 1600mm (h) – when the column is lifted
Contact Voltage Sensing:Voltage is adjusted automatically
Maximum Can Height:600mm (23.62”)
Maximum Body Diameter:305mm (12”)
Maximum Base Rim Diameter:305mm (12”)
Minimum Base Rim Diameter:20mm (0.79”)
Minimum Neck Diameter:14.5mm (0.57”)



PRODUCT BENEFITS

Smart Design

  • Specially engineered robust base to support pails and extra-large cans
  • Built-in calibration resistors

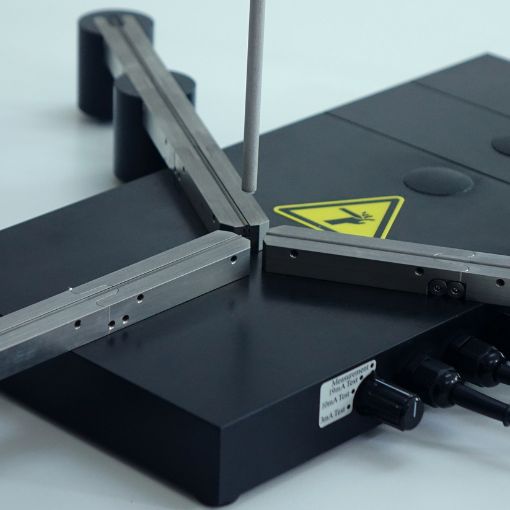

  • Sharp, blunt-proof contact blocks to assure perfect can contact without needing sandpaper
  • Level probe assures a correct level of test liquid

Low Maintenance

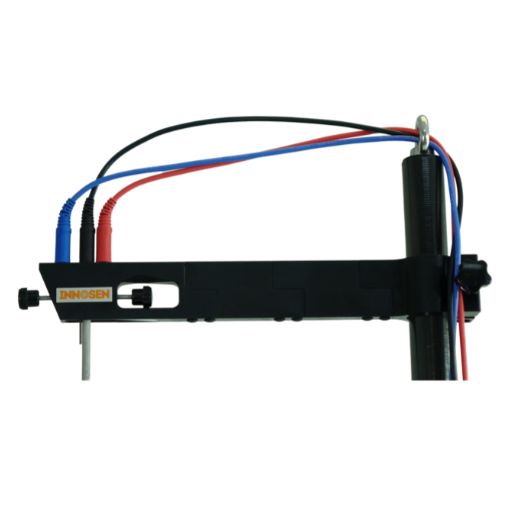

  • Detachable arm and probe for easy cleaning (washable)
  • Durable silicone cables made of specialized rubber that withstand bending without breaking

Cost-Efficient

  • Durable parts that need no constant repairs.
  • Built with Titanium probes that will last forever
  • Corrosion-proof

Semi-Automatic

  • Hands-free gauge for continuous batch testing, no need to press buttons!

ACCESSORIES

ELECTROLYTE MANAGEMENT SYSTEM
IS9024

No more troublesome handling of electrolyte.
Fast and Semi-automatic.

The IS9024 Electrolyte Management System offers the following features:

  • Semi-automatically fill and empty the can under test with electrolyte
  • 3-speed filling option to accommodate large range of cans (0.5 to 9+ litres)
  • Remote control unit for easy operation
  • Programmable timing to fill and empty cans
  • Easy connection to the IS9015 Can stand
  • Retrofittable to old can stands
IS240 Electrolyte Management System 510px

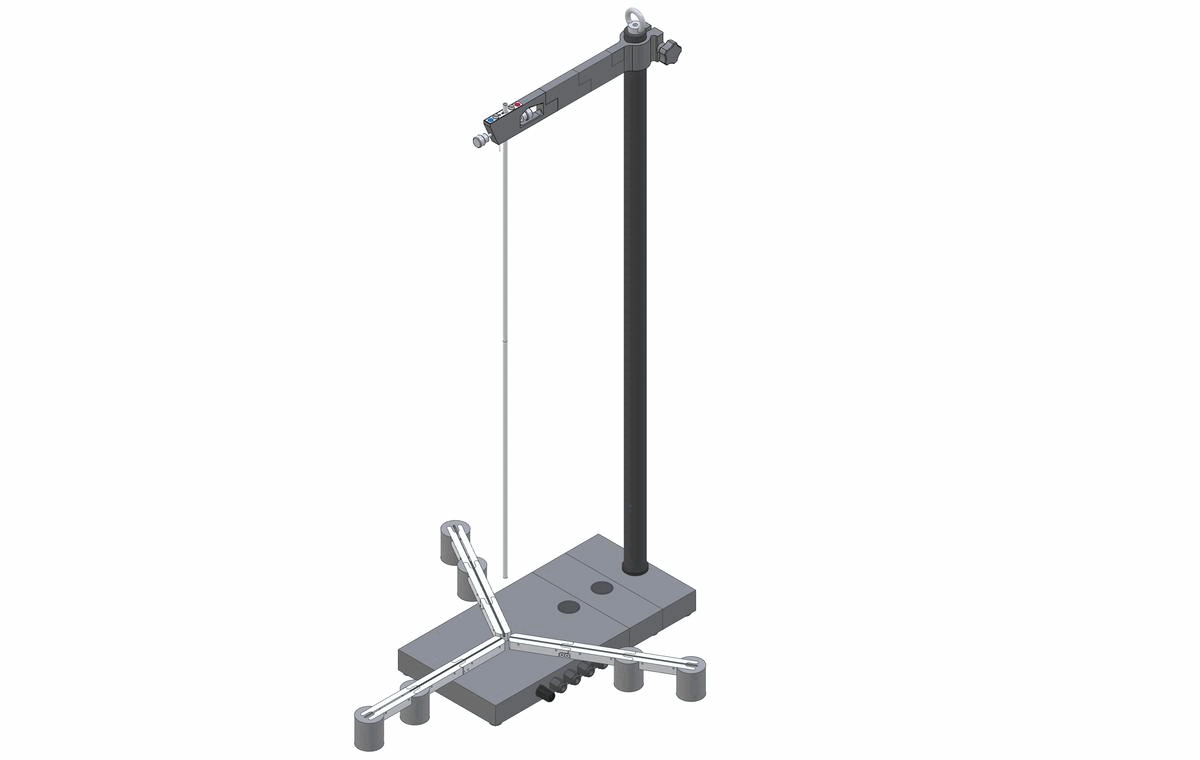

Animation



IS9015XXL GIF

Related Products

IS9015-NA-225px

Can Stand for Enamel Rater IS9015

For measuring coating porosity on the widest possible range of can shapes and sizes.

TNY SI9100-225px

Semi-automatic Enamel Rater SI9100

High-resolution electronics with advanced test monitoring feature in a rugged waterproof casing.

Tube Stand for Enamel Rater

Tube Stand for Enamel Rater IS9017

Specially designed for measuring coating porosity of aluminium collapsible tubes.

IS9029 Light Probe

Light Probe IS9029

Lights up the inside of a tube / can to make it easy to see faults during enamel rating tests.
