Light Tester for Easy Open Ends

ELTP

100% LIGHT TESTING FOR LEAKS ON EASY OPEN ENDS ON THE CONVERSION PRESS

ELTP can normally be installed on any press that makes round food or beverage ends from 112 to 603 / 44.5mm – 153mm in size using belt pocket transfer. Other sizes and non-round shapes can also be considered for installation with specially designed adaptations.

BENEFITS & FEATURES

Highly sensitive leak detection

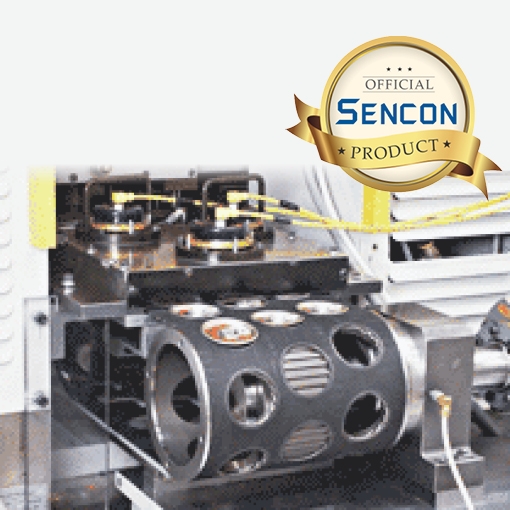

By testing 100% of production on the press, the End Light Tester Package (ELTP) delivers a significant improvement in product quality for a low investment and with minimal disruption.

The latest models are equipped with next generation LEDs that deliver double the sensitivity of older models and four times the sensitivity of competitor systems.

Experience shows that most types of end defect are detected, including leakers due to tears or pinholes in the panel, score and chuck wall, as well as split rivets. Clipped curl and compound blob defects can also be detected if they are large enough to affect the light seal around the end.

Real 5-micron capability

ELTP

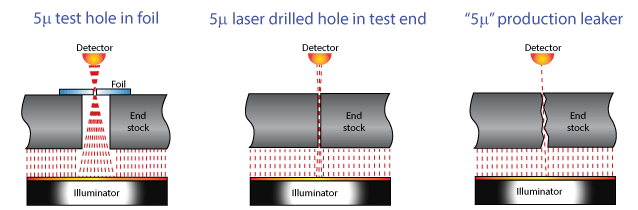

Quoted sensitivities for light-based leak detection systems typically refer to tests made under laboratory conditions. Competitor claims of “5-micron” capability are often based on pinholes in foil patches. These allow much more light to pass than laser cut holes in real end stock, which is what ELTP’s 5-micron capability is based on. Sencon systems actually detect 1 micron pinholes in foil patches. Online capabilities on the conversion press will depend on the nature and location of defects and environmental factors. ELTP has been shown to out-perform comparable systems in the real world.

System always ready for testing

The latest models of ELTP are fitted which a special Flash Control feature which switches off the lighting arrays if the detectors are flooded with light due to very large holes, or because no end is in the pocket. This allows the detectors to recover in time for reliable testing of the end in the following pocket. Older versions of ELTP can be upgraded to take advantage of these improvements. Contact Innosen for details.

Non round and outsize ends

Systems for non-round and outsize ends are made to customer specifications. Mechanical installation packages available for most beverage end conversion presses. ELTP has also been successfully installed on food end conversion presses.



ELTP Food Ends
Hidden Leakers

Some flaws, such as rivet cracks under the tab, cannot be detected with light as they only open up under pressure. Sencon recommends using the sampling Micro Leak Tester (MLT) in conjunction with ELTP for all round protection.
