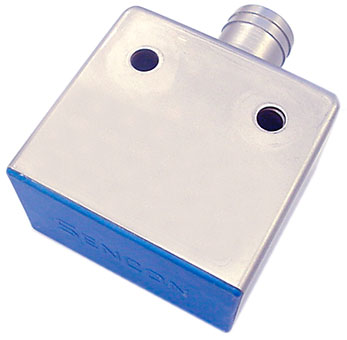

Can Filling Line Sensors

11PH-330,340,341-XX series

STAINLESS STEEL SENSORS DESIGNED SPECIALLY FOR THE NEEDS OF THE CAN FILLING INDUSTRY

Giving long-life, trouble-free service.

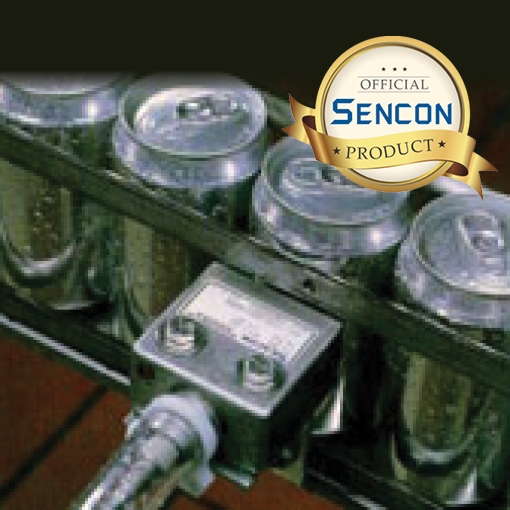

Special sensors are needed to satisfy the strict requirements of food or beverage can filling lines. The sensors must be completely hygenic, resistant to steam and high temperatures, and to high pressure chemical washdown. They must also be highly reliable and stable in all kinds of environmental and process conditions. Sencon can filling sensors are specially designed to meet all these criteria.

Filline Line Sensor Selector Guide

Single FileMass ConveyorSensing Range: Typical Aluminum CanSensing Range: Typical Steel CanOperating VoltageSensor
Yes0.45" / 11.4mm
0.65" / 16.5mm
11 - 30 VDC11H-330-03
Yes0.50" / 12.7mm0.75" / 19mm11 - 30 VDC11H-340-03
Yes0.45" / 11.4mm0.65" / 16.5mm20 - 250 VAC (47 - 63Hz) or DC11P-330-05-SS
Yes0.50" / 12.7mm0.75" / 19mm20 - 250 VAC (47 - 63Hz) or DC11P-340-05-SS
Yes1.00" / 25.4mm1.28" / 32.5mm20 - 250 VAC (47 - 63Hz) or DC11P-341-05-SS
