AEROSOL PROBE
IS9571
Fast, accurate, and non-destructive coating thickness testing for aerosol cans.

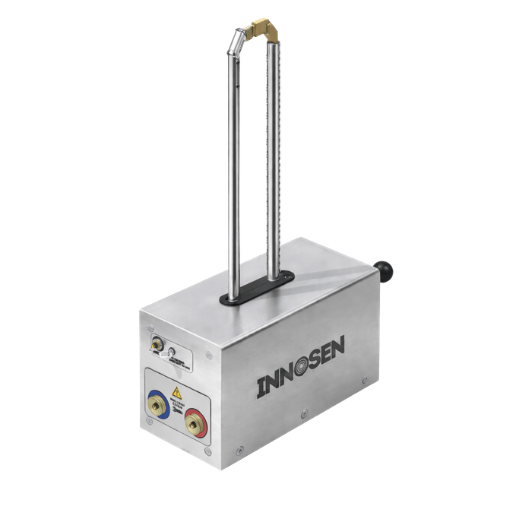

The IS9571 Aerosol Probe is Innosen’s high-precision solution for measuring internal and external lacquer thickness on aerosol cans—without the need for destructive weigh-strip-weigh methods. Specially designed to work with the IS860 CoatPro (Coating Thickness Gauge), this probe delivers exceptional repeatability and reproducibility (R&R), helping tube makers ensure product safety, performance, and cost efficiency.
With its narrowed probe tip and innovative flexure system, the IS9571 Aerosol Probe can measure tubes as small as ø46 mm and lengths up to 330 mm, delivering accurate results every time. From optimising spray machine settings to maintaining coating integrity, this smart probe makes quality control simple, fast, and reliable.
Related Products: IS9651 Hoverprobe™ II, IS860 CoatPro
BENEFITS
✅ Quickly assess both internal and external coating thickness for collapsible aluminium tubes
✅ Delivers world-class R&R, eliminating variability with zero-stiction measurement design
✅ Get to know exactly when to adjust your coating process to prevent over- or under-lacquering
✅ No need for weigh-strip-weigh—get precise data without damaging the product
✅ Designed for quick setup, intuitive operation, and rapid probe tip replacement
FEATURES
✅ Slim Probe Tip – Reaches and accurately measures inner lacquered surfaces
✅ Dual-Surface Measurement – Reads both internal and external coatings in one setup
✅ Versatile Fit – Compatible with aerosols as small as ø46 mm
✅ Stiction-Free Readings – Rotary flexure system ensures smooth, accurate results
✅ Consistent Pressure – Force multiplier flexure maintains uniform contact
✅ Stable Contact – Dead-weight design resists temperature-based variation
✅ Quick Tip Change – Swap probe tips in seconds for minimal downtime
✅ Noise-Resistant Build – Shielded and grounded to reduce signal interference
✅ Secure Grounding – Non-deforming clip holds position without affecting accuracy
| KEY SPECIFICATIONS | |
|---|---|
| Dimension | 315 mm (12.40”) length, 109 mm (4.29”) width, and 515 mm (20.28”) height |
| Tube Diameter | 46 mm (1.81”) minimum to 67 mm (2.64”) maximum |
| Tube Length | 330 mm (12.99”) maximum |
| Weight | 5.5 kg |
