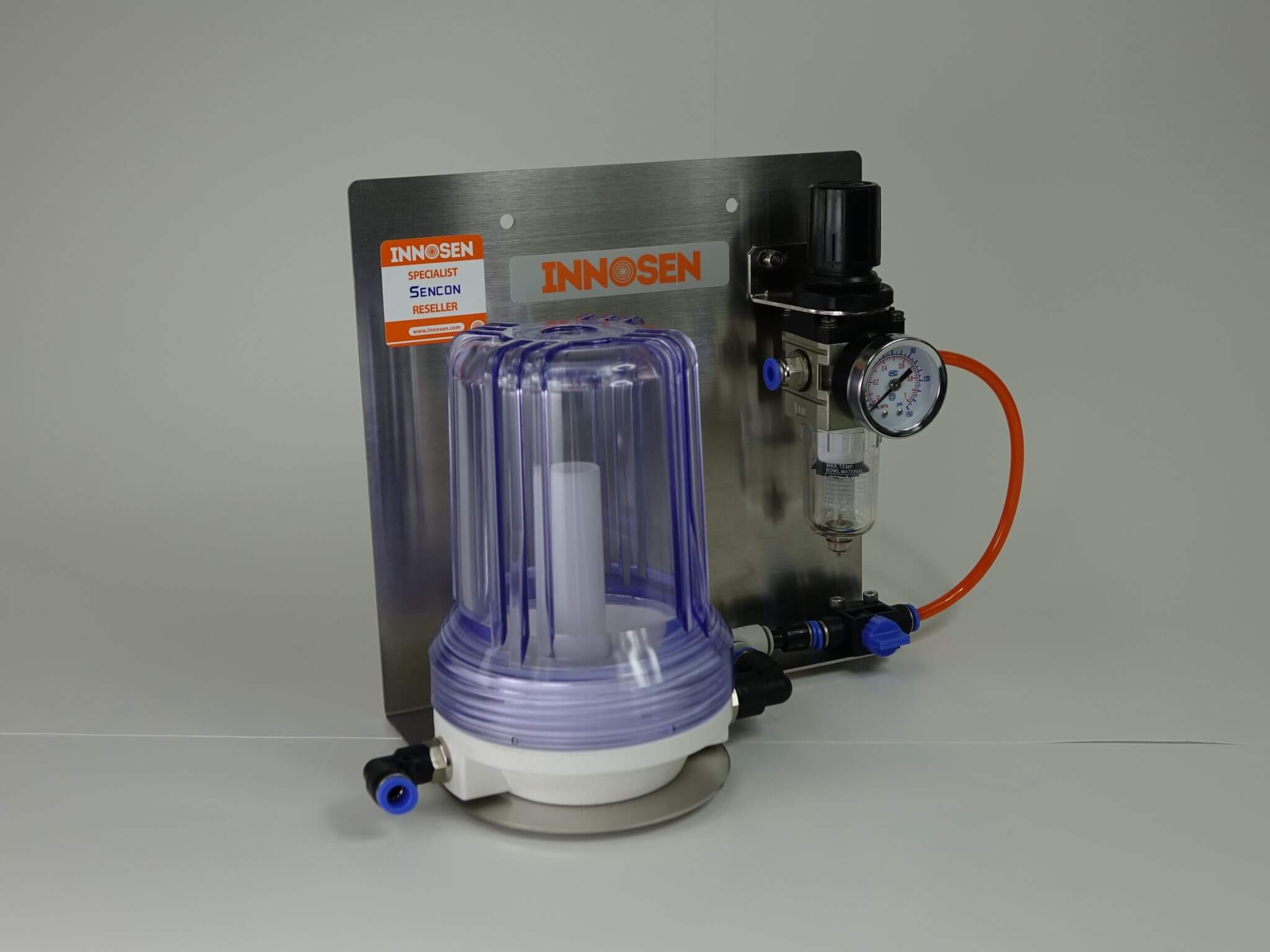

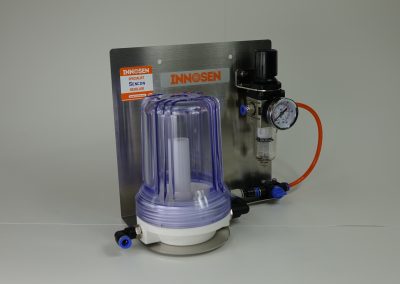

FOIL ENAMEL RATER
IS9030
For checking the coating porosity on aluminium foil sheets
Bad contacts are the main reason for unreliable reading on adapters. On Innosen’s Foil Enamel Rater, contacts are verified before every test. Because it’s semi-automatic, all the operator needs to do is to load the aluminium foil sheet and invert the pot. When used with a dedicated Sencon’s SI9100, the voltage drop in the cables is compensated for so that, irrespective of the current, 6.3 volts is always supplied. This leads to more accurate measurement and better repetition.
IS9030 Image
BENEFITS

✅ Reliable semi-automatic operation

✅ Self-checking of electrical contacts before every test

✅ Automatic voltage compensation for
better accuracy and repeatability

✅ Durable, corrosion-proof design for long product life

✅ Measures different range of foil thickness

ADD-ONS

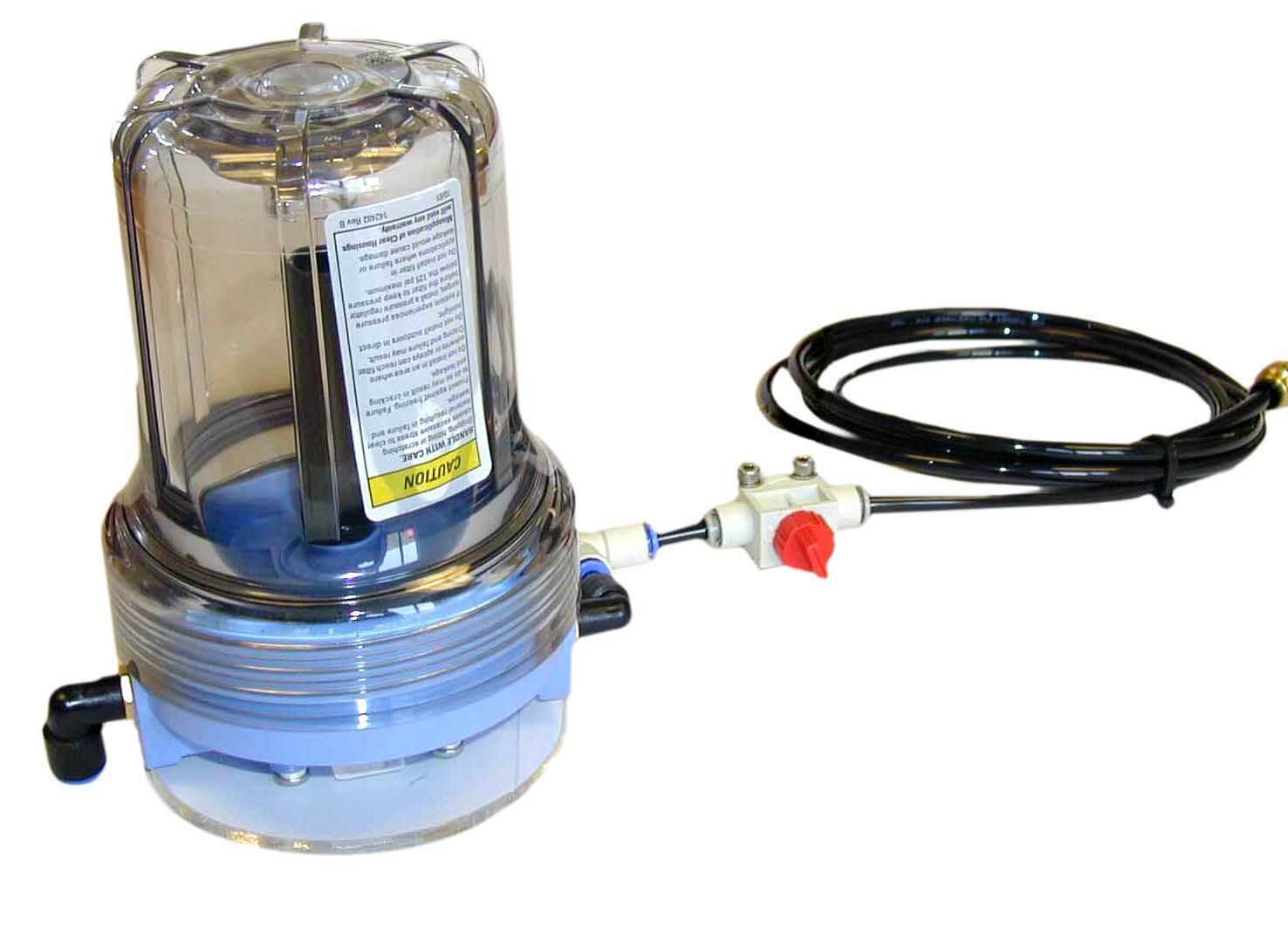

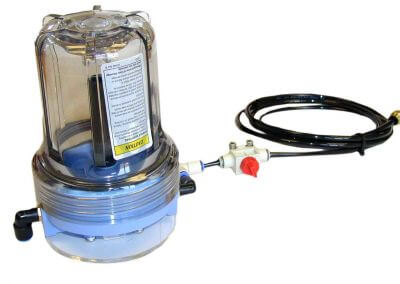

VACUUM GENERATOR IS9021
Specially designed vacuum generator unit incorporating air pressure regulator/filter as well as water separator to avoid electrolyte getting into your air supply.

Semi-Automatic Operation

To measure an aluminium foil sheet, all the operator needs to do is load the aluminium foil sheet and invert the pot.
Automatic Icon

Automatic Voltage Compensation

When used with a dedicated SI9100, the voltage drop in the cables is compensated for so that, irrespective of the current, 6.3 volts is always supplied. This leads to more accurate measurement and better repeatability.
Volt Icon

Self-Checking Automatic Contact Checking

Bad contacts are the main reason for unreliable reading on adaptors. On Innosen’s Foil Enamel Rater contacts are verified before every test.
Check Icon

Durable Design

Made from engineering plastic, stainless steel and titanium throughout, the unit will not corrode in harsh enamel rating environments.
Design Icon

Integrated Calibration Verification Switch

Allows you to quickly ensure that your equipment operates perfectly.
Switch Icon

Watch IS9030’s Video
